Self-priming centrifugal electric pumps, suitable for many industrial applications. The special casing design of this pump series enables enhanced priming of the suction system without the need for continuous filling of liquid in the pipes and avoiding the need of a foot valve installation.
This assures fast and safe self-priming in any conditions thanks to the specific position and interaction of the volute with the casing.
The RC series electric pumps are available as bare-shaft pumps with base frame and flexible coupling, or close-coupled to a normalized electric motor.
RB self-priming electric pumps: fast and safe self-priming in any condition
Self Priming Centrifugal Electric Pumps

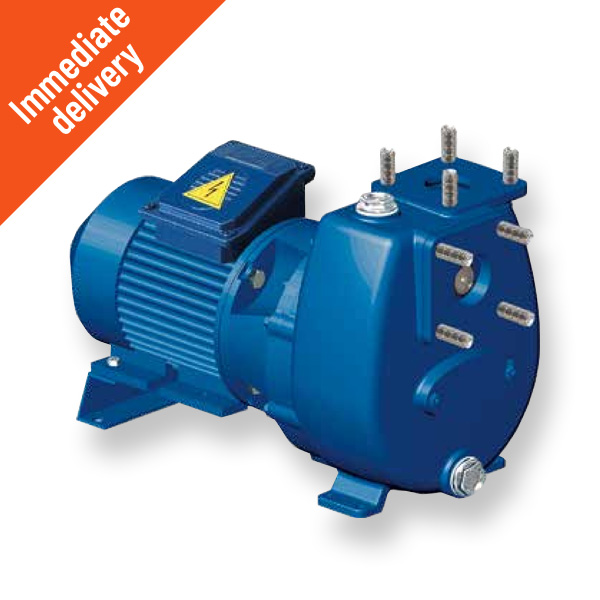

SELF PRIMING PUMP RB212
| RB212B | RB212A | |
|---|---|---|
| RPM | 2900 | 2900 |
| P MAX (kW) | 1.5 | 2.2 |
| Q MAX (m³/h) | 45 | 45 |
| H MAX (m) | 13 | 16 |
| Ø Inlet/outlet DN (mm – “) | 50/50 | 50/50 |
| Ø Impeller (mm) / N. blades | 110-3 | 125-3 |
| Free solids passage MAX (mm) | 25 x 23 | 25 x 23 |
Self Priming Centrifugal Electric Pumps
SELF PRIMING PUMP RB216
| RB216B | RB216A | |
|---|---|---|
| RPM | 2900 | 2900 |
| P MAX (kW) | 3 | 4 |
| Q MAX (m³/h) | 45 | 45 |
| H MAX (m) | 24 | 30 |
| Ø Inlet/outlet DN (mm – “) | 50/50 | 50/50 |
| Ø Impeller (mm) / N. blades | 140-3 | 158-3 |
| Free solids passage MAX (mm) | 25 x 22 | 22 x 22 |
Self Priming Centrifugal Electric Pumps
SELF PRIMING PUMP RB220
| RB220B | RB220A | |
|---|---|---|
| RPM | 2900 | 2900 |
| P MAX (kW) | 5.5 | 7.5 |
| Q MAX (m³/h) | 50 | 50 |
| H MAX (m) | 35 | 45 |
| Ø Inlet/outlet DN (mm – “) | 50 / 50 | 50 / 50 |
| Ø Impeller (mm) / N. blades | 175 – 2 | 196 – 2 |
| Free solids passage MAX (mm) | 40 x 30 | 40 x 30 |
WHAT DO YOU NEED?
Flow rate? Head? Power? Answer our short, free questionnaire now.
Just a few questions and we will confirm the type of pump that best matches your needs.
Self Priming Centrifugal Electric Pumps

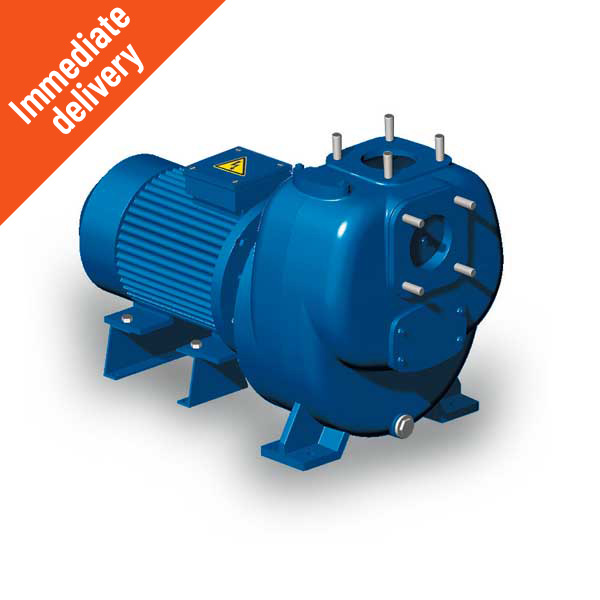

SELF PRIMING PUMP RB316
| RB316B | RB316A | RB316O | |
|---|---|---|---|
| RPM | 2900 | 2900 | 2900 |
| P MAX (kW) | 4 | 5.5 | 7.5 |
| Q MAX (m³/h) | 90 | 90 | 90 |
| H MAX (m) | 20 | 24 | 28 |
| Ø Inlet/outlet DN (mm – “) | 80 / 80 | 80 / 80 | 80 / 80 |
| Ø Impeller (mm) / N. blades | 138 – 3 | 146 – 3 | 160 – 3 |
| Free solids passage MAX (mm) | 35 x 25 | 35 x 25 | 35 x 25 |
Self Priming Centrifugal Electric Pumps
SELF PRIMING PUMP RB320
| RB320B | RB320A | RB320O | |
|---|---|---|---|
| RPM | 2900 | 2900 | 2900 |
| P MAX (kW) | 7.5 | 9 | 11 |
| Q MAX (m³/h) | 120 | 120 | 120 |
| H MAX (m) | 25 | 32 | 36 |
| Ø Inlet/outlet DN (mm – “) | 80 / 80 | 80 / 80 | 80 / 80 |
| Ø Impeller (mm) / N. blades | 162 – 3 | 178 – 3 | 188 – 3 |
| Free solids passage MAX (mm) | 40 x 35 | 40 x 35 | 40 x 35 |
WHAT DO YOU NEED?
Flow rate? Head? Power? Answer our short, free questionnaire now.
Just a few questions and we will confirm the type of pump that best matches your needs.
Self Priming Centrifugal Electric Pumps
SELF PRIMING PUMP RB325
| RB325B | RB325A | RB325O | |
|---|---|---|---|
| RPM | 2900 | 2900 | 2900 |
| P MAX (kW) | 15 | 18.5 | 22 |
| Q MAX (m³/h) | 120 | 120 | 120 |
| H MAX (m) | 43 | 51 | 56 |
| Ø Inlet/outlet DN (mm – “) | 80 / 80 | 80 / 80 | 80 / 80 |
| Ø Impeller (mm) / N. blades | 216 – 3 | 230 – 3 | 246 – 3 |
| Free solids passage MAX (mm) | 30 x 15 | 30 x 15 | 30 x 15 |
Self Priming Centrifugal Electric Pumps
SELF PRIMING PUMP RB325L
| RB325LB | RB325LA | |
|---|---|---|
| RPM | 1450 | 1450 |
| P MAX (kW) | 4 | 55 |
| Q MAX (m³/h) | 100 | 120 |
| H MAX (m) | 14 | 20 |
| Ø Inlet/outlet DN (mm – “) | 80 / 80 | 80 / 80 |
| Ø Impeller (mm) / N. blades | 218 – 3 | 250 – 3 |
| Free solids passage MAX (mm) | 40 x 15 | 40 x 15 |
WHAT DO YOU NEED?
Flow rate? Head? Power? Answer our short, free questionnaire now.
Just a few questions and we will confirm the type of pump that best matches your needs.
Self Priming Centrifugal Electric Pumps
SELF PRIMING PUMP RB416
| RB416A | |
|---|---|
| RPM | 2900 |
| P MAX (kW) | 11 |
| Q MAX (m³/h) | 180 |
| H MAX (m) | 27 |
| Ø Inlet/outlet DN (mm – “) | 80 / 80 |
| Ø Impeller (mm) / N. blades | 160 – 3 |
| Free solids passage MAX (mm) | 50 x 30 |
Self Priming Centrifugal Electric Pumps
SELF PRIMING PUMP RB425
| RB425B | RB425A | RB425O | |
|---|---|---|---|
| RPM | 2900 | 2900 | 2900 |
| P MAX (kW) | 22 | 30 | 37 |
| Q MAX (m³/h) | 180 | 180 | 180 |
| H MAX (m) | 53 | 62 | 66 |
| Ø Inlet/outlet DN (mm – “) | 100 / 100 | 100 / 100 | 100 / 100 |
| Ø Impeller (mm) / N. blades | 220 – 3 | 240 – 3 | 250 – 3 |
| Free solids passage MAX (mm) | 50 x 24 | 50 x 24 | 50 x 24 |
WHAT DO YOU NEED?
Flow rate? Head? Power? Answer our short, free questionnaire now.
Just a few questions and we will confirm the type of pump that best matches your needs.
Self Priming Centrifugal Electric Pumps
SELF PRIMING PUMP RB425L
| RB425LB | RB425LA | |
|---|---|---|
| RPM | 1450 | 1450 |
| P MAX (kW) | 5.5 | 7.5 |
| Q MAX (m³/h) | 170 | 180 |
| H MAX (m) | 16 | 20 |
| Ø Inlet/outlet DN (mm – “) | 100 / 100 | 100 / 100 |
| Ø Impeller (mm) / N. blades | 225 – 3 | 250 – 3 |
| Free solids passage MAX (mm) | 55 x 50 | 55 x 50 |
Self Priming Centrifugal Electric Pumps
SELF PRIMING PUMP RB431
| RB431B | RB431A | |
|---|---|---|
| RPM | 1450 | 1450 |
| P MAX (kW) | 11 | 15 |
| Q MAX (m³/h) | 200 | 200 |
| H MAX (m) | 26 | 32 |
| Ø Inlet/outlet DN (mm – “) | 100 / 100 | 100 / 100 |
| Ø Impeller (mm) / N. blades | 280 – 3 | 313 – 3 |
| Free solids passage MAX (mm) | 50 x 50 | 50 x 50 |
WHAT DO YOU NEED?
Flow rate? Head? Power? Answer our short, free questionnaire now.
Just a few questions and we will confirm the type of pump that best matches your needs.
Self Priming Centrifugal Electric Pumps
SELF PRIMING PUMP RB625
| RB625B | RB625A | |
|---|---|---|
| RPM | 1450 | 1450 |
| P MAX (kW) | 9 | 11 |
| Q MAX (m³/h) | 300 | 350 |
| H MAX (m) | 15 | 17 |
| Ø Inlet/outlet DN (mm – “) | 150 / 150 | 150 / 150 |
| Ø Impeller (mm) / N. blades | 230 – 3 | 250 – 3 |
| Free solids passage MAX (mm) | 75 x 50 | 75 x 50 |
Self Priming Centrifugal Electric Pumps

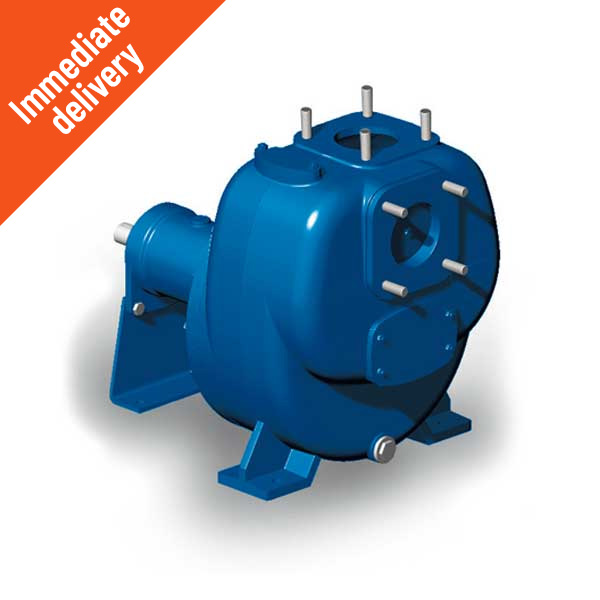

SELF PRIMING PUMP RB831
| RB831B | RB831A | RB831O | |
|---|---|---|---|
| RPM | 1450 | 1450 | 1450 |
| P MAX (kW) | 22 | 30 | 37 |
| Q MAX (m³/h) | 550 | 550 | 550 |
| H MAX (m) | 22 | 26 | 28 |
| Ø Inlet/outlet DN (mm – “) | 200 / 200 | 200 / 200 | 200 / 200 |
| Ø Impeller (mm) / N. blades | 270 – 3 | 300 – 3 | 315 – 3 |
| Free solids passage MAX (mm) | 75 x 78 | 75 x 78 | 75 x 78 |
WHAT DO YOU NEED?
Flow rate? Head? Power? Answer our short, free questionnaire now.
Just a few questions and we will confirm the type of pump that best matches your needs.
Self Priming Centrifugal Electric Pumps
SELF PRIMING PUMP RB1031
| RB1031B | RB1031A | |
|---|---|---|
| RPM | 1450 | 1450 |
| P MAX (kW) | 30 | 37 |
| Q MAX (m³/h) | 700 | 700 |
| H MAX (m) | 19 | 21 |
| Ø Inlet/outlet DN (mm – “) | 250 / 250 | 250 / 250 |
| Ø Impeller (mm) / N. blades | 275 – 2 | 300 – 2 |
| Free solids passage MAX (mm) | 85 x 85 | 85 x 85 |
Self Priming Centrifugal Electric Pumps

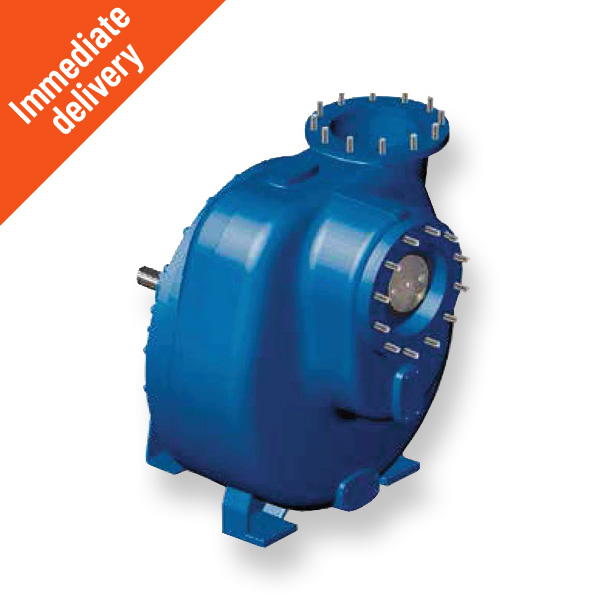

SELF PRIMING PUMP RB1240
| RB1240A | |
|---|---|
| RPM | 960 |
| P MAX (kW) | 55 |
| Q MAX (m³/h) | 1200 |
| H MAX (m) | 15 |
| Ø Inlet/outlet DN (mm – “) | 300 / 300 |
| Ø Impeller (mm) / N. blades | 400 – 2 |
| Free solids passage MAX (mm) | 105 x 100 |
SELF PRIMING
The separation type self-priming system operates inside the specially designed body. In greater detail, the liquid fills the pump body through an upper opening when the pump is stopped. Then, when the machine is started, the impeller transfers the liquid from the suction zone to the discharge zone. This occurs in a very short space of time (1-2 sec). At this point, an air-liquid circuit is set up between the impeller, volute and body. The liquid returns to the volute through the hole specially made on its edge.
The speed and vorticity of the mixture which forms draws the air into the suction zone, entraining it and releasing it into the discharge zone, where the speeds are lower and the air itself can separate due to the difference in densities. The faster the circuit time of the mixture, the shorter the priming time.
All this happens until the vacuum which is created in the intake duct reaches the same level as the head of the liquid from the pump. At this point, the liquid enters the impeller and the pump starts working like a normal centrifugal pump.
The priming process occurs automatically whenever air is present in the intake duct. The air expelled from the body flows towards the discharge line as an air bubble. It is therefore necessary for the discharge line to slope constantly upwards. The RHS system offers optimised priming as the volute, which is independent of the body, is designed and positioned for optimised efficiency.
VIESSE POMPE ITALIA SRL produces pumps for slurry and liquids of any viscosity.
The RHS (ROBUSTA HYDRAULIC SYSTEM) is the company’s key strength and leading product which has led the VIESSE stand out in the whole world
